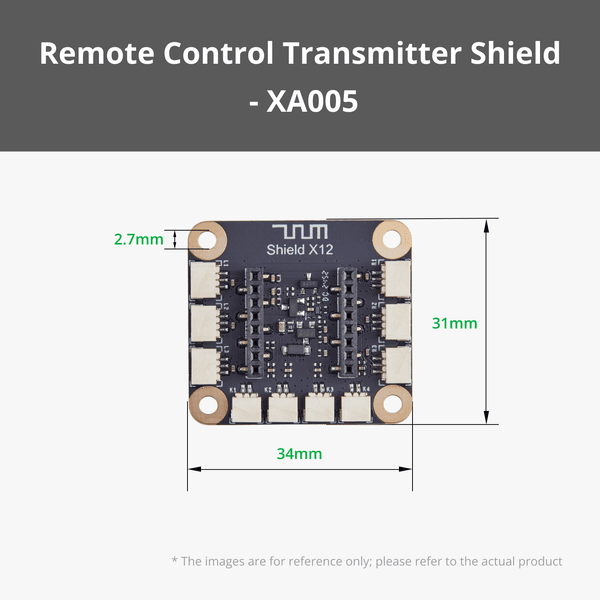

Remote Control Transmitter Shield (1PCS)
€7,99 EUR
Final price and VAT may change based on shipping destination at checkout.
This is a remote control transmitter shield designed for Cyberbrick. You can combine it with the Multi-Function Core Board to serve as the signal transmission end for various CyberBrick projects. The expansion board is equipped with 6 ADC input channels and 4 digital input channels, allowing flexible integration with joysticks, knobs, and custom buttons to meet a wide range of needs—from basic remote control to advanced command programming.
Quantità:
Order Info
- Order will be shipped out from DE warehouse in 1-3 business days once being processed.
- Free Shipping over €55 (most EU countries)
- Free Shipping over €119 (Norway, Cyprus, Malta, Switzerland)
- Shipping rates vary by locations. See our Shipping Policy for details.
Safety and product resources
Safety images
Contacts
Introduction
You can combine this product with a Multi-Function Core Board to form a Cyberbrick transmitter module. By pairing a Remote Control Receiver Shield with another Multi-Function Core Board, you can create a Cyberbrick receiver module. Connect joysticks and buttons to the transmitter module, and motors or servos to the receiver module, and you will have a minimal Cyberbrick remote control car project unit.
Can be combined with the Official R/C Combo Kits
Remote Control Toys
Product Specifications
| Item Number | Component | Description |
| 1 | Power Input | XH2.54 2Pin DC power input |
| 2 | ADC Input Port | Connecting ADC modules such as joystick |
| 3 | Digital Input Port | Connecting binary-input modules such as momentary button |
| 4 | Core Slot | Connectable with multi-function controller core |
| 5 | Orientation Mark | Ensure proper installation alignmen |
