Bambu ASA Aero
Bambu ASA Aero is a self-foaming material renowned for its exceptional durability and toughness. Its heat-sensitive foaming allows for controlled model density, resulting in feather-light print models. Additionally, it boasts extraordinary resistance to temperature, water, and UV rays. With these unique properties, it is ideal for printing long-lasting outdoor models and weight-sensitive projects, such as RC planes.
Impact Resistance & Built to Last
Compared with other foaming filament, ASA Aero is tougher with higher layer strength, making it more resistant to impact, collision, and falling, perfect for high-stress demanding applications.
|
Bambu ASA Aero
|
Bambu PLA Aero | Wood PLA | |
| Toughness (Impact Strength - XY) |
32.0 kJ/m²
|
24.5 kJ/m² | 7.9 kJ/m² |
| Layer Adhesion (Impact Strength - Z, Dry State) |
3.4 kJ/m²
|
2.5 kJ/m² | 1.1 kJ/m² |
| Layer Strength (Bending Strength - Z) |
24 MPa
|
15 MPa | 15 MPa |
Ultra-lightweight, Controllable Density

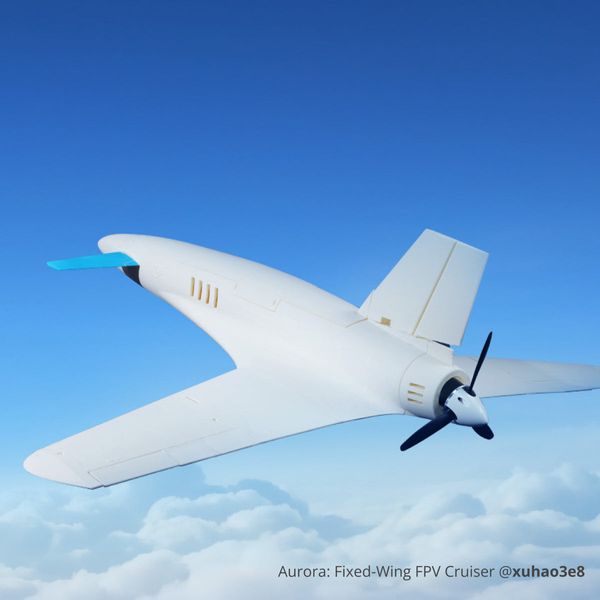

Only 50%-75% the density of regular ASA prints, ASA Aero is as light as feather, designed for weight-sensitive objects, such as RC planes and unmanned aerial vehicles (UAVs). With controllable foaming characteristic, ASA Aero achieves lower density of prints by increasing printing temperature or lowering flow rate.
The average density of prints will vary with changes in parameters such as actual printing temperature, flow rate ratio, printing speed, model size, wall thickness and infill density.
|
Parameter Setting
|
Average Density
|
|
| Printing Temperature | Increases ↗ | Decreases ↘ |
| Printing Speed | Increases ↗ | Stable or Increases ↗ |
| Flow Rate Ratio | Increases ↗ | Increases ↗ |
| Model Size | Increases ↗ | Decreases ↘ |
| Wall Thickness（Wall loops） | Increases ↗ | Increases ↗ |
| Infill Density | Increases ↗ | Increases ↗ |
The relationship between the maximum foaming rate, minimum print density, and printing temperature of ASA Aero.
|
Printing Temperature
|
Flow Rate Ratio
|
Volumetric Expansion Ratio
|
Foaming Rate
|
Prints Density
|
| 220 °C | ~ 0.93 | ~ 100% | ~ 0% | ~ 0.97 g/cm³ |
| 230 °C | 0.90 | 106% | 6% | 0.92 g/cm³ |
| 240 °C | 0.74 | 128% | 28% | 0.78 g/cm³ |
| 250 °C | 0.60 | 158% | 58% | 0.61 g/cm³ |
| 260 °C | 0.51 | 186% | 86% | 0.52 g/cm³ |
| 270 °C | 0.45 | 211% | 111% | 0.46 g/cm³ |
| 280 °C | 0.44 | 216% | 116% | 0.45 g/cm³ |
Specimen Test: Nozzle Type: 0.4 mm; Printing Speed: 80 mm/s; Model size (L*W*H): 80*10*4 mm³ (the XY direction)
The actual required flow rate ratio and final model density may vary with different models.
Ready for Harsh Environment & Outdoor
Compared with PLA Aero, the overwhelming performance in temperature, water, and UV resistance makes ASA Aero stand out for long-lasting outdoor use and harsh environments.
| Filament Type | Bambu PLA Aero | Bambu PLA Basic |
Bambu ASA Aero
|
Bambu ASA |
| Heat Deflection Temperature / °C (0.45 MPa) | 54 °C | 57 °C |
85 °C
|
100 °C |
Matte Finish For Easy Coloring
Bambu ASA Aero provides an easy-to-color matte surface texture with better dyeing results as compared with regular ASA.
Parameters Comparison
Learn more different filaments comparison on Bambu Filament Guide >>
| Bambu ASA |
Bambu ASA Aero
|
Bambu PLA Aero | |
| Printing Temperature | 240 - 270 °C |
240 - 280 °C
|
210 - 260 °C |
| Printing Speed | < 250 mm/s |
< 150 mm/s
|
< 250 mm/s |
| Flow Rate Ratio | 0.93 - 0.97 |
0.45 - 0.80
|
0.5 - 0.8 |
| Filament Density | 1.05 g/cm³ |
0.99 g/cm³
|
1.21 g/cm³ |
| Foaming Rate | / |
0 - 110%
|
0 - 120% |
| Volumetric Expansion Ratio | 102% |
100% - 210%
|
100% - 220% |
| Prints Density | 1.03 g/cm³ |
0.46 ~ 0.97 g/cm³
|
0.55 - 1.05 g/cm³ |
Accessory Compatibility
| Recommended | Not Recommended | |
| Build Plate | Engineering Plate, High Temperature Plate | Textured PEI Plate |
| Hotend | 0.4 mm Nozzle (All type) | 0.2mm / 0.6 mm / 0.8 mm Nozzle |
| Glue | Bambu Liquid Glue Glue Stick |
/ |
ASA Hex Code Table
| Color | Hex Code | Display | |
| White | #F5F1DD | ||
RFID for Intelligent Printing
All printing parameters are embedded in RFID, which can be read through our AMS (Automatic Material System).
Load and print! No more tedious setting steps.
| Recommended Printing Settings | |
| Drying Settings (Blast Drying Oven) | 80 °C, 8 h |
| Printing and Keeping Container's Humidity | < 20% RH (Sealed, with Desiccant) |
| Nozzle Temperature | 240 - 280 °C |
| Bed Temperature (with Glue) | 80 - 90 °C |
| Printing Speed | < 150 mm/s |
| Physical Properties | |
| Density | 0.99 g/cm³ |
| Vicat Softening Temperature | 80 °C |
| Heat Deflection Temperature | 85 °C |
| Melting Temperature | 204 °C |
| Melt Index | 1.56 ± 0.5 g/10 min |
| Mechanical Properties | |
| Tensile Strength | 32 ± 4 MPa |
| Breaking Elongation Rate | 5.1% ± 1.6% |
| Bending Modulus | 1510 ± 120 MPa |
| Bending Strength | 58 ± 6 MPa |
| Impact Strength | 32.0 ± 2.5 kJ/m² |
Downloads
Printing Tips
• Foaming ASA materials (ASA Aero) have high requirements for material drying and parameter settings. Please carefully read ASA Aero Printing Guide before starting the printing process.
• Drying conditions: 80℃ for 8 hrs. ASA Aero is highly sensitive to humidity. To achieve optimal printing performance, it is recommeded further drying before use and after storage. For more details please refer to: Filament Drying Recommendations on WIKI.
• To minimize warping, avoid printing large-sized high infill density models. Use enclosed printers and ensure the build plate is properly applied with glue for better print adhesion before printing. Set lower printing speed and higher heatbed temperature. For more details please refer to: Common print quality problems and solutions on WIKI.
• Pungent and unpleasant odors may be released during printing. Make sure your printer is placed in a well-ventilated area and use enclosed printers.
What's in the Box?
Filament with Spool*1 & Desiccant*1
Filament Label*1
Package*1
