M6 Carbon Steel Socket Head Cap Machine Screws (SHCS)
€1,75 EUR
Final price and VAT may change based on shipping destination at checkout.
Ilość:
Order Info
- Order will be shipped out from DE warehouse in 1-3 business days once being processed.
- Free Shipping over €55 (most EU countries)
- Free Shipping over €119 (Norway, Cyprus, Malta, Switzerland)
- Shipping rates vary by locations. See our Shipping Policy for details.
Safety and product resources
Safety images
Contacts
Documentation
Specification
3D Model maker? ![Socket Head Cap Machine Screws (SHCS)]()
?
|

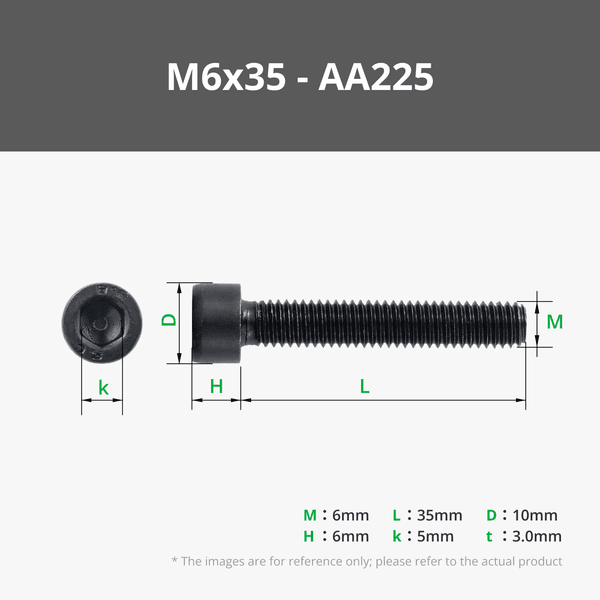

Product ID
|
L (mm)
Bolt Length |
D (mm)
Head Diameter |
H (mm)
Head Thickness |
k (mm)
Hexagon Across Flats |
t (mm)
Groove Depth |
Screwdriver Bit
Size |
| AA225 | 35 | 10 | 6 | 5 | 3 | H5 |
*Compliant with the requirements of GB/T 70.2-2015 standard [Equivalent standards: ISO 7380-1 - 2011, DIN EN ISO 7380 (-1) - 2011]
Forgot the screw specs? Just print the Screw Gauge model from MakerWorld to help with sorting.
?
Basic Information
| Surface Treatment | Black zinc-nickel alloy plated |
| Mounting Hole Shape | Hex socket |
| Screw Type | Machine thread |
| Material | Carbon steel |
| Thread Ridge Type | Full thread |
| Color | Black |
?
Product Feature
-
Carbon Steel Socket Head Cap Machine Screws (SHCS)
-
Nominal thread: M6
-
Strength grade: 12.9
-
Full thread series
-
Type of thread: Full thread
€1,75 EUR
