Bambu Lab

Cipher Helmet Lock Kit

€4,76 EUR

Final price and VAT may change based on shipping destination at checkout.

Save
Code:
Copy
Please note that the product does not include the 3D printed parts as shown in the main image.
Hoeveelheid:
€4,76 EUR

Order Info
  • Order will be shipped out from DE warehouse in 1-3 business days once being processed.
  • Free Shipping over €55 (most EU countries)
  • Free Shipping over €119 (Norway, Cyprus, Malta, Switzerland)
  • Shipping rates vary by locations. See our Shipping Policy for details.


Overview

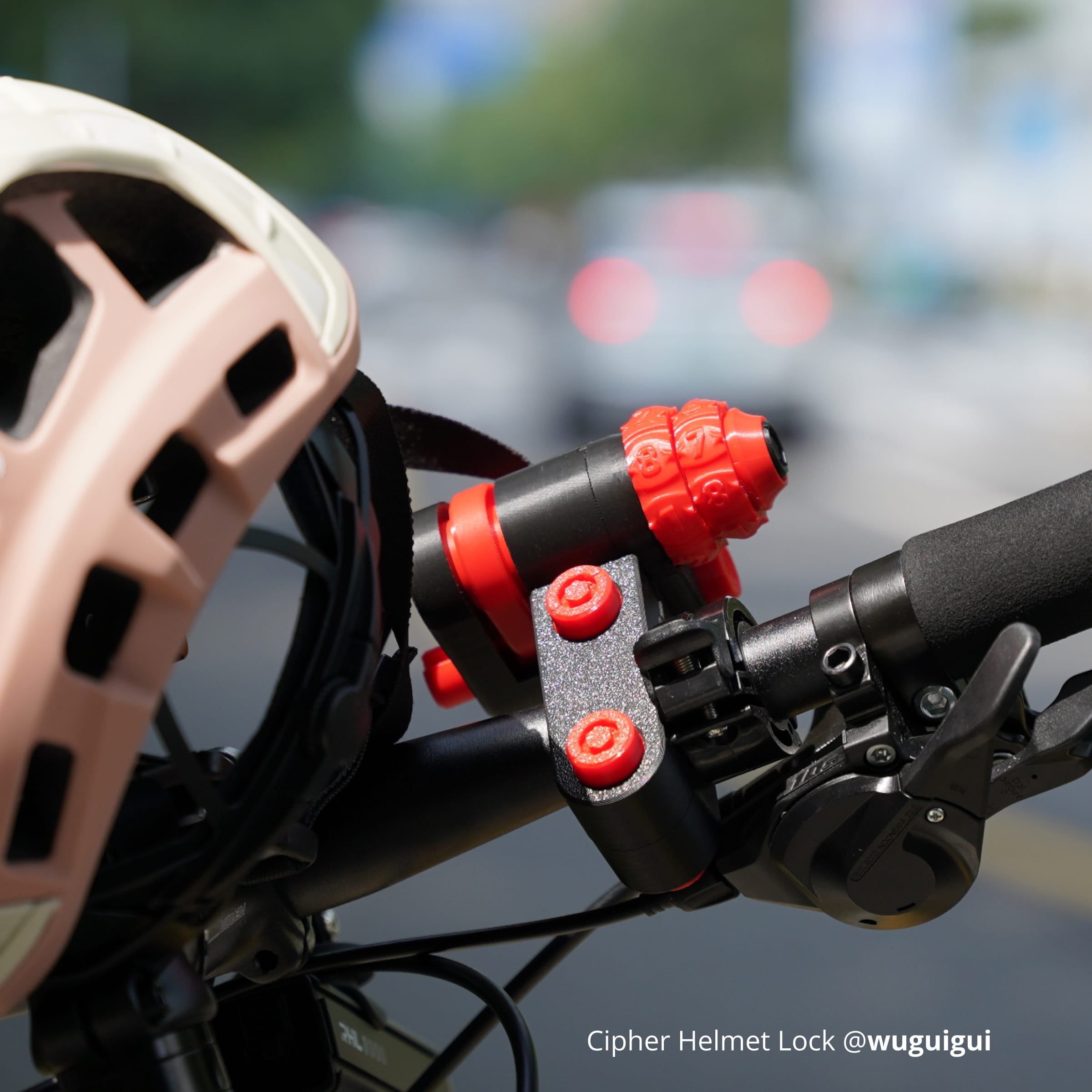

The Cipher Helmet Lock is a remarkable product designed to provide a convenient and secure solution for helmet storage. This kit contains all the non-3D printed hardware components necessary to assemble a Cipher Helmet Lock. It can be fixed onto a bicycle handle and used to lock a helmet by setting a password and inserting the helmet strap. To complete the project, you need to download the model files on MakerWorld and 3D print the parts.


Creator Program: The Creator Program is a collaborative program between Bambu Lab and creators. Creators unleash their creativity to design 3D printing models, while Bambu Lab provides compatible hardware kits for those designs.


LED Lamp





Locking Mechanism



Password-Protected:

The lock features a password-based locking system. You can choose your desired numbers as ciphers and set them in the P6 and P7 parts. The operation of setting and using the password is intuitive.



Anti-Cracking Features:

The lock has an anti-cracking mode that adds an extra layer of security. When the wrong combination is entered and the lock release button P11 is pushed, the P3 part will move, preventing unauthorized access. Even if the correct numbers are turned on the cipher gears (P6 and P7), the lock will not open until the anti-cracking mode is deactivated.








Assembly and Compatibility




  • Comprehensive Kit: The Assembly Manual includes all standard parts and 3D print parts required for assembly. For long-term outdoor use, it is recommended to select filaments with suitable weather resistance according to factors such as ambient temperature and light conditions. - Tool Requirements: To assemble the lock, you need a Philips head screwdriver and tweezers. These tools assist in the precise installation of various components.

  • Tool Requirements: To assemble the lock, you need a Philips head screwdriver and tweezers. These tools assist in the precise installation of various components.

  • Bicycle Handle Compatibility: It can be easily attached to the steel pipe of a bicycle handle. The lock is designed to fit different handle sizes, having a default diameter of 22mm, with other sizes available to download from the author's space on MakerWorld.


  • Documentation


    2D Assembly Manual 3D 3D Model






    In the Box

    Item Number Item Name Qty
    1 BT2x8 SHCS Self Tapping Screw 5
    2 0.3x4x15 mm Helical Compression Spring 2
    3 0.3x3x5 mm Helical Compression Spring 5
    4 1x18x15 mm WPB Helical Compression Spring 2
    5 M6x35 SHCS Machine Screw 3
    6 M6 Carbon Steel Self Locking Hex Nut 3
    7 M6x12x1.6 Carbon Steel Flat Washer 5
